Trolley Specifications

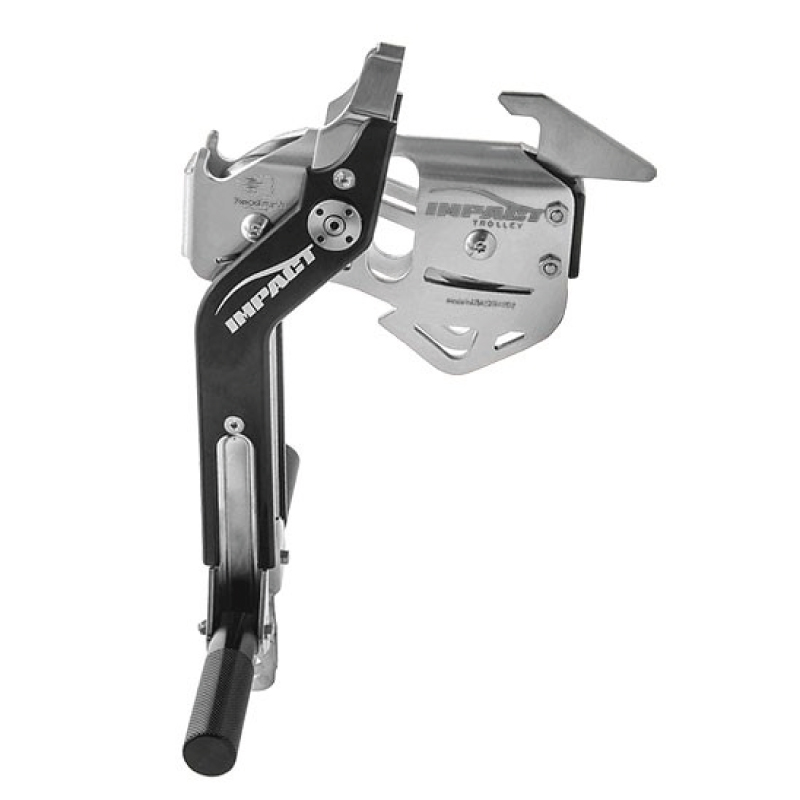

Model ITTL-100 (Impact Trolley with T-Handle and hook accessory)

Dimensions: 7.1 x 4.4 x 1.3 in (180 x 111 x 33 mm)
Net Weight: 1.2 lbs (544 grams)
Working Temperatures: Minimum: -40°C/-40° F
Maximum: 80°C/176°F

Maximum Operating Speed: 75 mph (120 kph)
Materials: Housing: Anodized Aluminium Sheaves: Stainless Steel
Impact Surface: ABS Plastic

Rated Working Capacity: 33-330 lbs (15-150 kg)
Maximum Load Rating: 17 kN (3,822 lbf)
Min/Max Cable diameter: 9.5 ≤ Dia ≤ 19 mm (3/8” ≤ Dia ≤ 3/4”)
Hook Accessory Specifications

Model LU-100

Dimensions: 71 x 81 x 6 mm (2.8 x 3.2 x 0.24 in)
Net Weight: 0.2 lbs (3.2 oz)
Working Temperature (Minimum): -40˚C/-40˚F
Working Temperature (Maximum) 80˚C/176˚F
Materials: Stainless Steel

T-Handle Specifications

Model THS-100

Pivoting Swing Arm Dimensions (folded): 360 x 30 x 50 mm (14.2 x 1.2 x 2.0 in)
Net Weight: 1.1 kg (2.4 lbs)
Working Temperature (Minimum): -40˚C/-40˚F
Working Temperature (Maximum) 80˚C/176˚F
Materials: Stainless Steel
Rated Working Capacity: 15–150 kg (30–330 lbs)
Maximum designed impact velocity: 80 kph (50 mph); max impact force is 3.5 kN (786 lbf)
